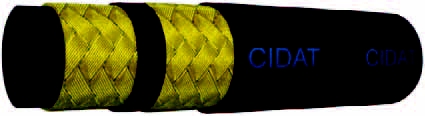

R2A - 2ST


APLICATII
Folosit la transportul fluidelor hidraulice ca uleiurile minerale, uleiuri, hidrocarburi, etc.

OPERATING TEMPERATURE
- 40C/ + 100C (+125C DISCONTINUOUS)
- 40F/ + 212C
Cod: -
Diametru Interior

Diametru Exterior

Presiune de Lucru

Presiune de Rupere

Raza min. de Indoire

Greutate
DN Nominal Dashinchmminchmmpsibarbarpsimmkg/m
32TIR2A053 0 5 3 3/16 4,8 0.625 15,90 6000 415 1650 23950 90 0.380
32TIR2A063 0 6 4 1/4 6,4 0.689 17,50 5800 400 1600 23200 100 0.430
32TIR2A083 0 8 5 5/16 7,9 0.752 19,10 5100 350 1400 20300 115 0.480
32TIR2A103 0 10 6 3/8 9,5 0.842 21,40 4800 0.330 1320 19150 130 0.610
32TIR2A133 0 12 8 1/2 12,7 0.968 24,60 4000 275 1100 15950 180 0.720
32TIR2A163 0 16 10 5/8 15,9 1.095 27,80 3600 250 1000 14500 200 0.920
32TIR2A193 0 19 12 3/4 19,0 1.252 31,80 3100 215 850 12350 240 1.060
32TIR2A253 0 25 16 1 25,4 1.563 39,70 2400 165 650 9450 300 1.560
32TIR2A323 0 32 20 1 1/4 31,8 2.000 50,80 1800 125 500 7250 420 2.190
32TIR2A383 0 38 24 1 1/2 38,1 2.252 57,20 1300 90 360 5250 500 2.470
32TIR2A514 0 51 32 2 50,8 2.748 69,80 1150 80 320 4650 630 3.500
