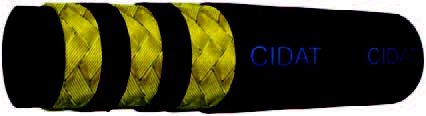

3 Trecce
APLICATII
Folosit la transportul fluidelor hidraulice ca uleiurile minerale, uleiuri, hidrocarburi, etc.
OPERATING TEMPERATURE
- 40°C/ + 100°C (+125°C DISCONTINUOUS)
- 40°F/ + 212°C
| Cod: | - |  Diametru Interior |  Diametru Exterior |  Presiune de Lucru |  Presiune de Rupere |  Raza min. de Indoire |  Greutate |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN Nominal ø | Dash | inch | mm | inch | mm | psi | bar | bar | psi | mm | kg/m | |
| 32TIR3T133 0 | 12 | 8 | 1/2” | 12,7 | 0.945 | 24,0 | 6815 | 470 | 1880 | 27260 | 160 | 0.951 |
| 32TIR3T193 0 | 19 | 12 | 3/4” | 19,0 | 1.240 | 31,5 | 5438 | 375 | 1500 | 21750 | 260 | 1.347 |
| 32TIR3T253 0 | 25 | 16 | 1 | 25,4 | 1.575 | 40,0 | 4350 | 310 | 1200 | 17400 | 310 | 2.280 |
